Sliding Systems

System

Fıratpen Sliding Systems are developed for large areas where conventional door and window operation is not possible and they provide an ideal solution for many areas with their aesthetic and decorative features, convenient use and the functional solutions offered for large openings.

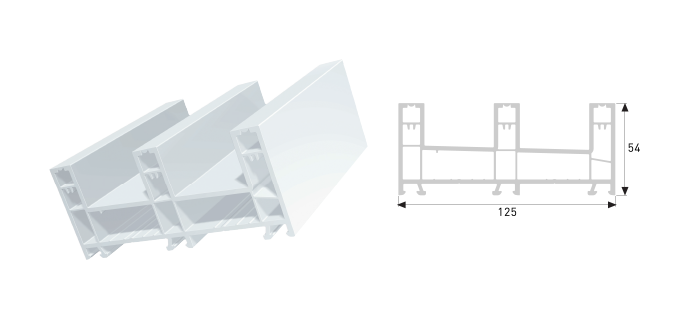

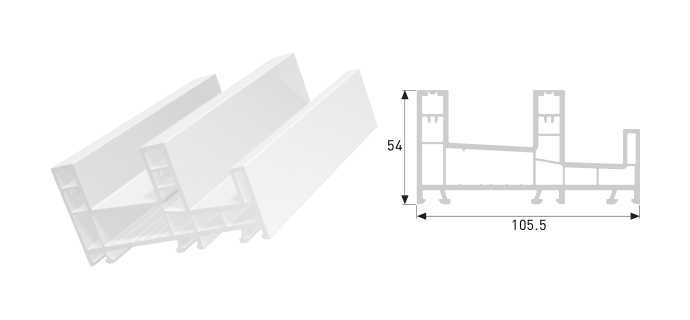

• It can be applied installed to housings, pools, sports halls, terraces and balconies, offering comfortable and convenient use even in large openings thanks to its single rail, double rail and triple rail system options.
• Fıratpen Sliding Series ensure an air permeability rate of is 0.33 m3/hcm and a wind resistance rate of 2000 Pa with special brushes and TPE seals featured.
• Provides 32db sound insulation with 75mm profile width.
• They are compatible with other Fıratpen series since all auxiliary and detail profiles can be integrated to sliding series systems.
• Suitable for 5 mm single glazing, 20 and 24 mm double glazing applications.
• It does not require a separate channel closing process and provides a more aesthetic appearance as it features a self-closing channel on the frame profile.

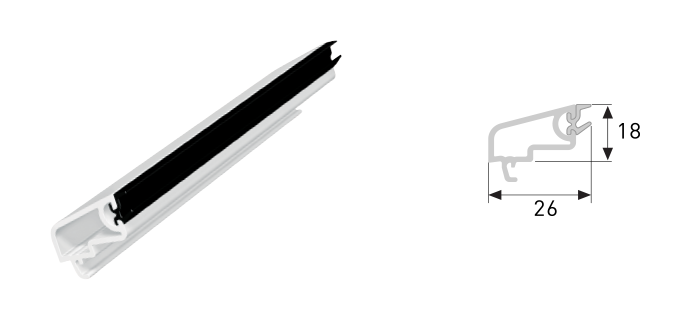

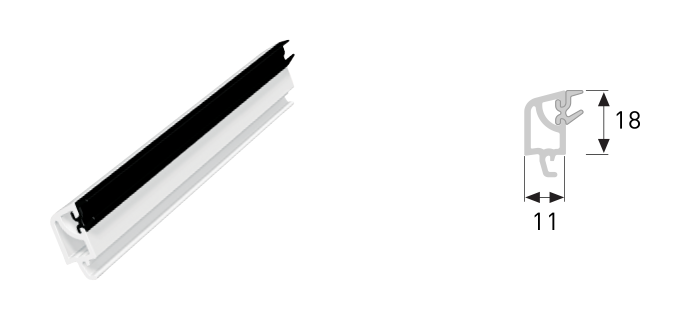

• The glazing beads feature an inclination of 45° to prevent accumulation on dust offering a better adhesion for the glass by pressing against the glazing surface.
• It offers full safety through use of standard sliding espagnolettes.

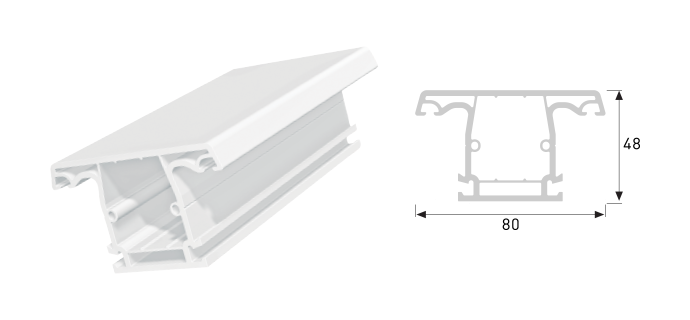

• The sash closing profile constitutes an interlocking structure to prevent dust and dirt to enter inside.
• Special sliding series fly net system application is available.
