Garnet 70

System

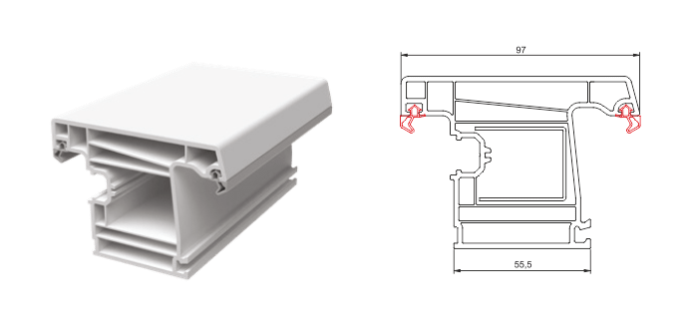

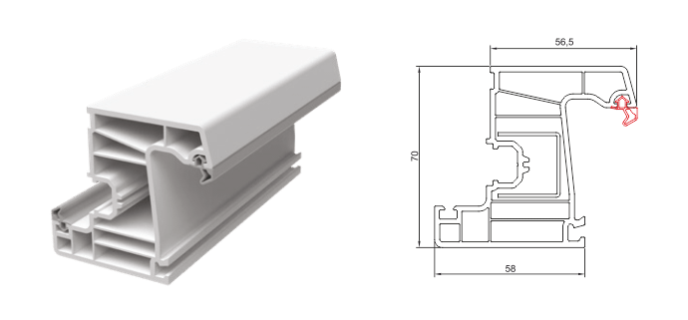

• With all main profiles having 70 mm width and class B wall thickness, Garnet System also features the New Strong Series designed with 3 seals to ensure maximum insulation rates in the series of 70 mm.

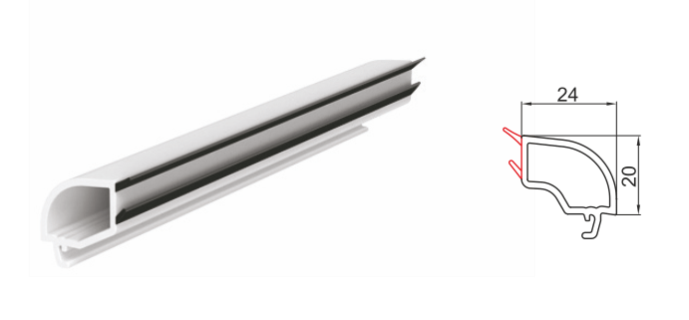

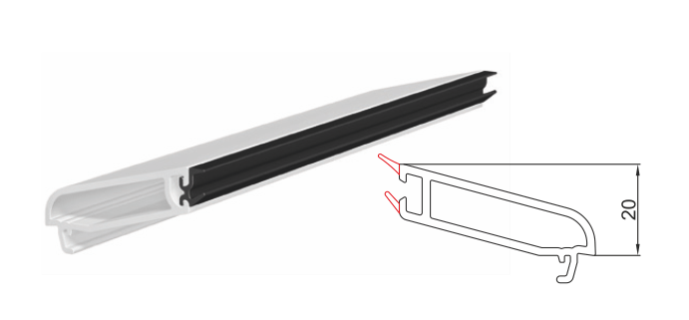

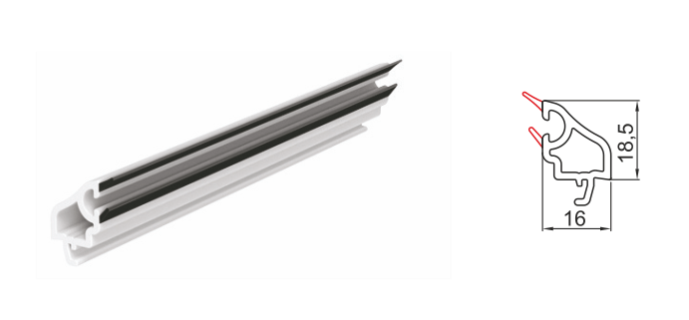

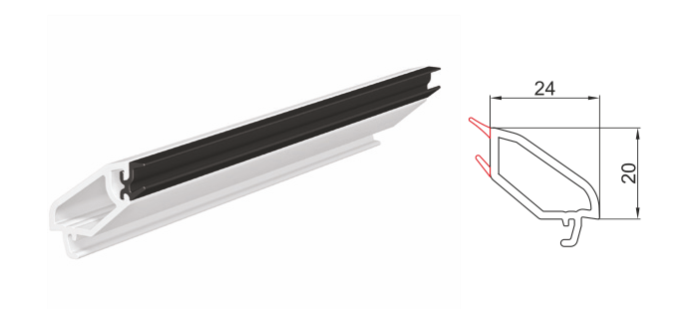

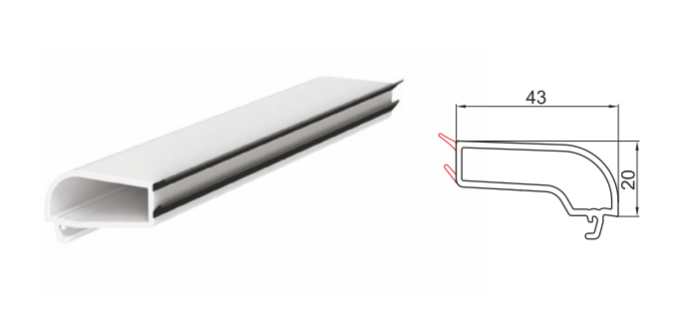

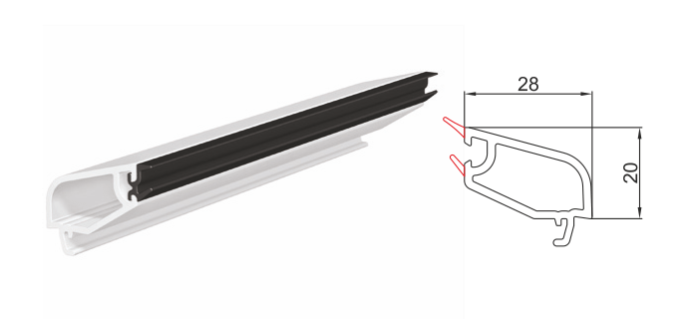

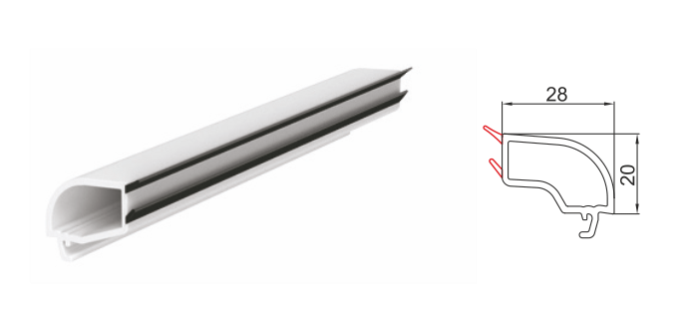

• The system features 4 different decorative bead alternatives while having 4 different bead types that increase the width of the interior surface.
• It can easily accommodate all architectural details thanks to the detail and auxiliary profiles designed in accordance with the main profiles.
• Glazing applications up to 40 mm can be accommodated thanks to the bead profiles that the system features.
• Garnet and Garnet Strong series offer options to meet the aesthetic expectations for your home with 22 different lamination color alternatives.

Wind Load Resistance

• Garnet system has been designed according to 1800 Pa safety test and 600 Pa (110 km/h) water tightness tests and successfully passed them.
• Garnet Strong series offers perfect solutions and features triple seal to ensure strength in buildings which are exposed to high wind loads.
• The maximum wind load values that the structures can be exposed to were taken into account while developing the Garnet system, and the structure of the support sheets and their positions within the profile were designed to achieve maximum efficiency.

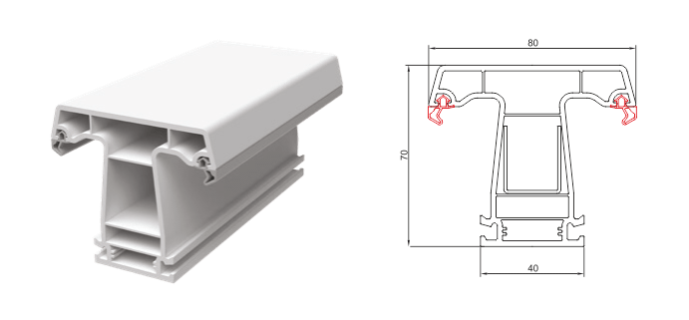

• The system can easily achieve the necessary strength ratings and covers of wide large openings in the buildings with the detail and mullion profiles that offer solutions to meet architectural expectations.

Water and Air Tightness

• Garnet Selective Strong Series is designed with 3 seals to keep air and water permeability at minimum levels.
• A center seal is provided for energy saving in addition to the standard inner and outer seals.
• Garnet system ensures high resistance to rain even in case of high wind loads thanks to the water drainage angle and channels developed for a faster and more convenient water drainage.
• No water leak has occurred to the indoors during the tests conducted under 600 Pa (110 km/h) wind load.

Thermal Insulation

• Being the most important aspect for better energy savings in PVC window systems, it was aimed to keep the heat transmission coefficient value at the lowest level while designing Garnet and Garnet Strong Series.
• The profile widths, number of chambers and chamber widths of the system have been developed to keep the heat and sound insulation at the highest levels.
• The best insulation values that can be possible in a 70 mm PVC window system have been achieved with the 3rd center seal system.

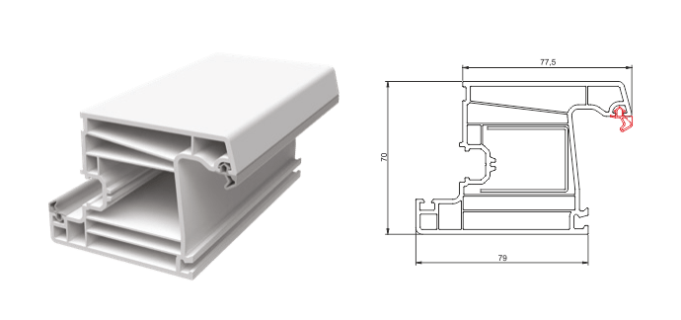

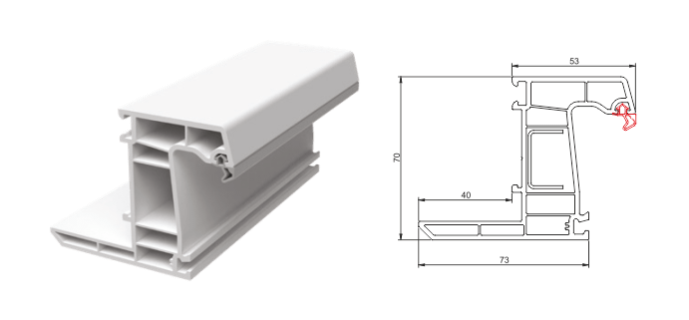

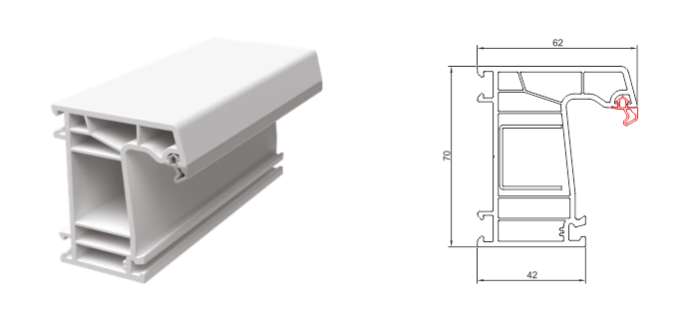

• All profiles in the Garnet system have a 5-chamber structure and the heat transmission coefficient values are at low levels thanks to the greater chamber widths.
• A window system with the dimensions of 1.23 m x 1.43 m can achieve the values of Ug: 0.7 W/m2K. Uw: 1.05 W/m2K and Uf : 1.2 W/m2K in accordance with TS EN ISO 10077-2 standard.

Sound Insulation

• Sound insulation is one of the most important quality criteria of window systems. Garnet and Garnet Strong systems are capable of reducing the high sound levels of around 70 dB, which occurs in buildings close to airports, railways or major highways, to the levels below 40 dB, which is a sound level that allows a child to sleep easily.
• It is possible to ensure a sound insulation up to 40 dB with Garnet and Garnet Strong series. Thus, it is possible to create quality living spaces at adequate sound levels even in the noisiest surroundings.
